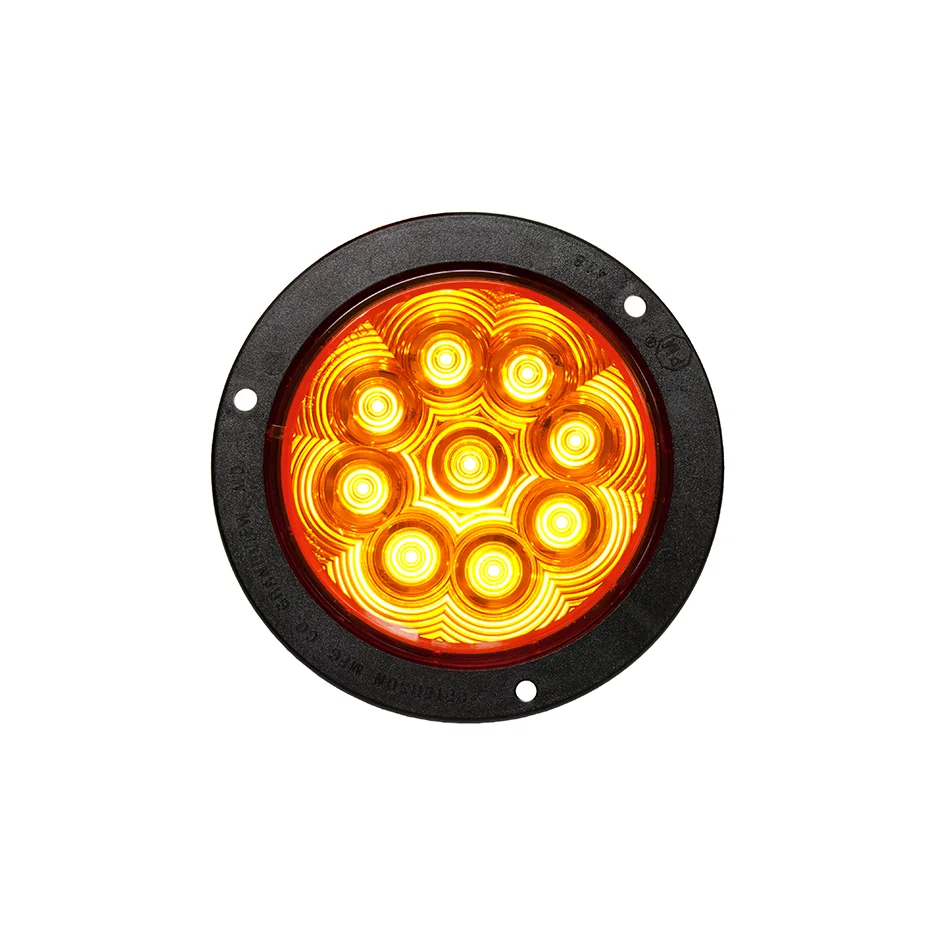

1216/1217/1218A-9 DIRECTION INDICATOR
1216/1217/1218A-9 DIRECTION INDICATOR
ECE certified to Reg 6 for front & rear use
LumenX® lens
Built-in AMP-compatible receptacle for direct attachment to body harness or requires B417-48 or B817-48 plug
Dual voltage 12/24 V
IP67 rating
PM-1216A & PM-1216AC surface mount with bracket
PM-1217A-9 surface mounts using 817 series bracket or flush mounts using B426-18 grommet
PM-1218A flange mounts
Relevant Market Sectors
Additional Information
Part Numbers
PM-1216A-9 – LED direction indicator light, surface mount, black bracket
PM-1216AC-9 – LED direction indicator light, surface mount, chrome bracket
PM-1217A-9 – LED direction indicator light module (see mounting accessories below)
PM-1218A-9 – LED direction indicator light, flange mount
Accessories
PM-B817-09 – Black bracket for PM-1217A-9 (surface mounting)
PM-B817-10 – Chrome bracket for PM-1217A-9 (surface mounting)
PM-B426-18 – Grommet for PM-1217A-9 (for flush mounting)
PM-B417-48 – 2 wire plug
PM-B817-48 – 2 wire plug (moulded)
| Stop | Pos | Ind | Fog | Rev | Num | Mrkr | Reflex |
|---|---|---|---|---|---|---|---|
| ✓ |
